SS316 vs SS304 Ball Valve: Material Selection for Corrosive Environments
Key Takeaway
SS316 contains 2-3% molybdenum (Mo) with a PREN of 24-26, providing significantly superior chloride and acid resistance versus SS304 (PREN 18-20). SS304 costs 15-20% less and works well for general industrial and food-grade applications. If your system involves seawater, chemicals, glycol coolant, or humid environments, choose SS316. For clean water, steam, or dry indoor settings, SS304 is sufficient.
What's the Difference Between SS316 and SS304?
Both are austenitic stainless steels. The critical difference: SS316 contains 2-3% molybdenum (Mo), which dramatically improves resistance to pitting corrosion and crevice corrosion — the two most common failure modes for stainless steel in chloride-bearing environments.
Chemical Composition Comparison
| Element | SS304 (CF8) | SS316 (CF8M) | Impact |
|---|---|---|---|
| Chromium (Cr) | 18-20% | 16-18% | Basic corrosion resistance |
| Nickel (Ni) | 8-10.5% | 10-14% | Toughness, acid resistance |
| Molybdenum (Mo) | 0% | 2-3% | Chloride resistance (key difference) |
| Carbon (C) | ≤0.08% | ≤0.08% | Strength |
| PREN Value | 18-20 | 24-26 | Pitting resistance indicator |
PREN (Pitting Resistance Equivalent Number) = %Cr + 3.3 × %Mo + 16 × %N. Higher = better pitting resistance.
Temperature & Mechanical Properties
| Property | SS304 | SS316 |
|---|---|---|
| Max Operating Temp | 870°C (1,598°F) | 870°C (1,598°F) |
| Tensile Strength | 515 MPa (75 ksi) | 515 MPa (75 ksi) |
| Yield Strength | 205 MPa (30 ksi) | 205 MPa (30 ksi) |
| Seawater Resistance | Poor (pitting in 6 months) | Excellent (years without visible corrosion) |
| Glycol Resistance | Acceptable | Excellent |
| Price (relative) | Baseline | +15-20% |
When to Choose SS316
- Marine/coastal environments: Salt spray, seawater contact
- Chemical processing: Acids, alkalis, chloride solutions
- Data center liquid cooling: Glycol-water coolant (may contain chloride additives)
- Pharmaceutical/biotech: Highest-grade corrosion resistance required
- Outdoor installations: Humid, rainy environments
When to Choose SS304
- Food processing: Clean water, steam, dairy lines (FDA approved)
- Indoor industrial: Dry environments, general water treatment
- Budget-sensitive: 15-20% savings is significant across hundreds of valves

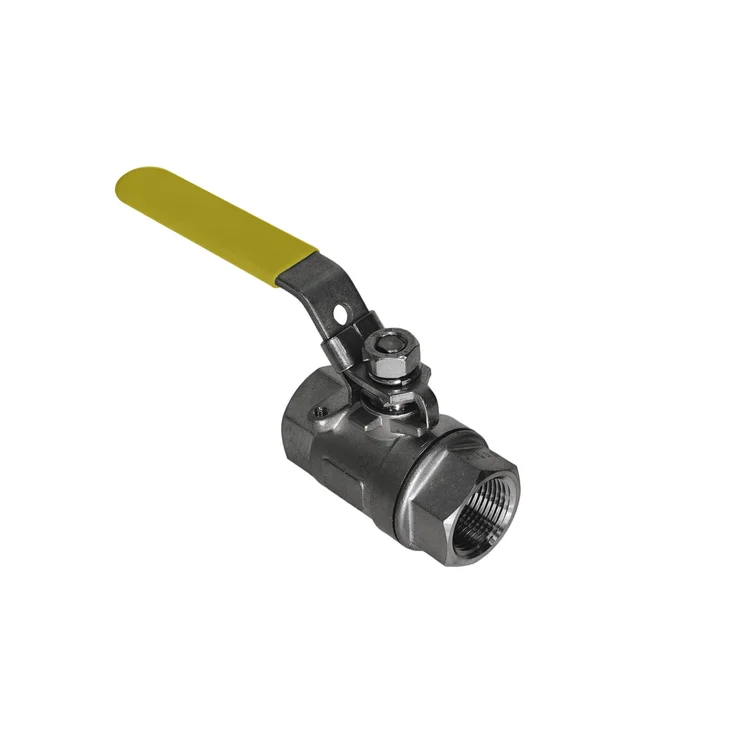

Why LINS Valve Focuses on SS316
Since 1945, LINS Valve has specialized in SS316 (CF8M) ball valve manufacturing. The reason is straightforward: our Fortune 500 OEM customers — Honeywell, WATTS, Zurn Elkay, NIBCO — operate in demanding environments, from U.S. water treatment systems to AI data center liquid cooling loops. SS316 reliability is a key reason these customers choose LINS Valve.
SS316 vs SS304 球閥：腐蝕環境中的材質選擇指南
重點摘要
SS316 含 2-3% 鉬（Mo），PREN 值 24-26，在氯化物和酸性環境中的耐蝕性遠超 SS304（PREN 18-20）。SS304 價格低 15-20%，適合一般工業和食品級應用。如果你的系統涉及海水、化學品、glycol 冷卻液或潮濕環境，選 SS316；純水、蒸汽或室內乾燥環境，SS304 足夠。
SS316 和 SS304 有什麼不同？
兩者都是奧氏體不鏽鋼（Austenitic stainless steel），核心差異在於 SS316 額外含有 2-3% 的鉬（Molybdenum）。這個小小的成分差異，讓 SS316 在耐點蝕（pitting corrosion）和耐縫隙腐蝕（crevice corrosion）方面明顯優於 SS304。
化學成分對照表
| 成分 | SS304 (CF8) | SS316 (CF8M) | 影響 |
|---|---|---|---|
| 鉻 (Cr) | 18-20% | 16-18% | 基礎防鏽 |
| 鎳 (Ni) | 8-10.5% | 10-14% | 韌性、耐酸 |
| 鉬 (Mo) | 0% | 2-3% | 耐氯化物腐蝕（關鍵差異） |
| 碳 (C) | ≤0.08% | ≤0.08% | 強度 |
| PREN 值 | 18-20 | 24-26 | 點蝕抵抗力指標 |
PREN（Pitting Resistance Equivalent Number）= %Cr + 3.3 × %Mo + 16 × %N。數值越高，耐點蝕能力越強。
耐溫與機械性能比較
| 特性 | SS304 | SS316 |
|---|---|---|
| 最高工作溫度 | 870°C (1,598°F) | 870°C (1,598°F) |
| 抗拉強度 | 515 MPa (75 ksi) | 515 MPa (75 ksi) |
| 屈服強度 | 205 MPa (30 ksi) | 205 MPa (30 ksi) |
| 海水耐蝕性 | 差（6個月可見點蝕） | 優（多年無明顯腐蝕） |
| Glycol 耐蝕性 | 可接受 | 優秀 |
| 價格（相對） | 基準 | +15-20% |
什麼時候選 SS316？
- 海洋/沿海環境：鹽霧、海水接觸
- 化學品處理：酸、鹼、氯化物溶液
- 數據中心液冷：glycol-water 冷卻液（乙二醇可能含氯化物添加劑）
- 製藥/生技：需要最高等級耐蝕性
- 室外安裝：潮濕、多雨環境
什麼時候選 SS304？
- 食品加工：純水、蒸汽、乳製品管路（FDA 認可）
- 室內工業：乾燥環境、一般水處理
- 預算有限：大量採購時，15-20% 的價差在數百個閥門中很可觀
LINS Valve 為什麼以 SS316 為核心？
LINS Valve 自 1945 年以來專注 SS316 (CF8M) 球閥製造。原因很簡單：我們的 Fortune 500 OEM 客戶（Honeywell、WATTS、Zurn Elkay、NIBCO）的應用場景大多在嚴苛環境——從美國的水處理系統到 AI 數據中心的液冷管路。SS316 的可靠性是這些客戶選擇 LINS Valve 的關鍵原因之一。
