How Ball Valves Are Made: Investment Casting, Forging & CNC — Stainless Steel, Bronze & Brass
Key Takeaway
The manufacturing process for a ball valve depends on the body material. Stainless steel valve bodies (CF8M / SS316) are typically produced by investment casting (lost-wax process), which delivers complex internal geometries with tight tolerances. Bronze bodies (C83600 / C84400) use sand casting, a cost-effective method suited to copper alloys. Brass bodies (C37700 / C36000) are primarily hot-forged, producing a denser grain structure with superior mechanical properties. After forming, all three materials go through the same downstream stages: CNC machining, ball and seat assembly, and hydrostatic pressure testing per API 598 or equivalent standards.
Why Does the Manufacturing Process Differ by Material?
Different metals have different physical properties — melting point, hot workability, and flow behavior — that make certain forming methods far more practical than others. Stainless steel is difficult to forge into complex shapes but flows well as a casting. Brass, on the other hand, has excellent hot workability that makes forging the natural choice. Bronze falls in between, with sand casting providing a balance of cost and design flexibility.
Understanding these process differences matters for engineers and procurement teams because the forming method directly affects the valve's mechanical properties, dimensional tolerances, surface finish, and cost.
How Are Stainless Steel Ball Valves Made? (Investment Casting)
Investment casting — also called the lost-wax process — is the standard manufacturing method for stainless steel ball valve bodies. It produces near-net-shape parts with excellent surface finish and dimensional accuracy, even for complex internal flow paths.
Process Steps
Why Investment Casting for Stainless Steel?
- Complex geometry: The internal passages of a ball valve body are difficult to machine from solid bar stock. Investment casting produces these shapes directly.
- Material efficiency: Near-net-shape casting means less material wasted compared to machining from solid.
- Surface finish: Investment casting produces a smoother as-cast surface than sand casting, reducing the amount of post-casting machining required.
- Alloy flexibility: The process works with a wide range of stainless steel grades (CF8, CF8M, CF3M, etc.).
How Are Bronze Ball Valves Made? (Sand Casting)
Bronze ball valve bodies are typically produced by sand casting, one of the oldest and most versatile metal forming processes. Common bronze alloys for valves include C83600 (leaded red brass / Ounce Metal) and C84400.
Process Steps
Why Sand Casting for Bronze?
- Cost-effective: Sand casting has lower tooling costs than investment casting or forging, making it practical for moderate production volumes.
- Design flexibility: Sand cores can create complex internal passages that would be difficult to machine.
- Material compatibility: Bronze alloys cast very well in sand molds, with good fluidity and minimal shrinkage issues.
How Are Brass Ball Valves Made? (Hot Forging)
Brass ball valve bodies are predominantly produced by hot forging — a process where a heated brass billet is shaped under high pressure in a closed die. This is the preferred method for high-volume production of small-to-medium brass valves.
Process Steps
Why Hot Forging for Brass?
- Superior grain structure: Forging produces a directional grain flow that follows the part's contours, resulting in higher mechanical strength and fatigue resistance compared to casting.
- Density: Forged parts are denser than castings, with no porosity or shrinkage voids — a common concern in cast products.
- Efficiency at volume: Once the forging dies are made, cycle times are fast, making forging very cost-effective for high-volume production.
- Brass workability: Brass alloys have excellent hot workability, making them ideal candidates for the forging process.
Three Forming Methods Compared
| Factor | Investment Casting (Stainless Steel) | Sand Casting (Bronze) | Hot Forging (Brass) |
|---|---|---|---|
| Typical Alloys | CF8M (SS316), CF8 (SS304) | C83600, C84400 | C37700, C36000 |
| Dimensional Accuracy | High (near-net-shape) | Moderate | Moderate to High |
| Surface Finish (as-formed) | Good | Rough (requires more machining) | Good |
| Internal Complexity | High (complex passages) | High (sand cores) | Limited (die constraints) |
| Grain Structure | Equiaxed (random) | Equiaxed (random) | Directional (follows contour) |
| Porosity Risk | Low | Moderate | Very Low |
| Tooling Cost | Moderate | Low | High (forging dies) |
| Best For | Complex SS valve bodies | Moderate-volume bronze valves | High-volume brass valves |

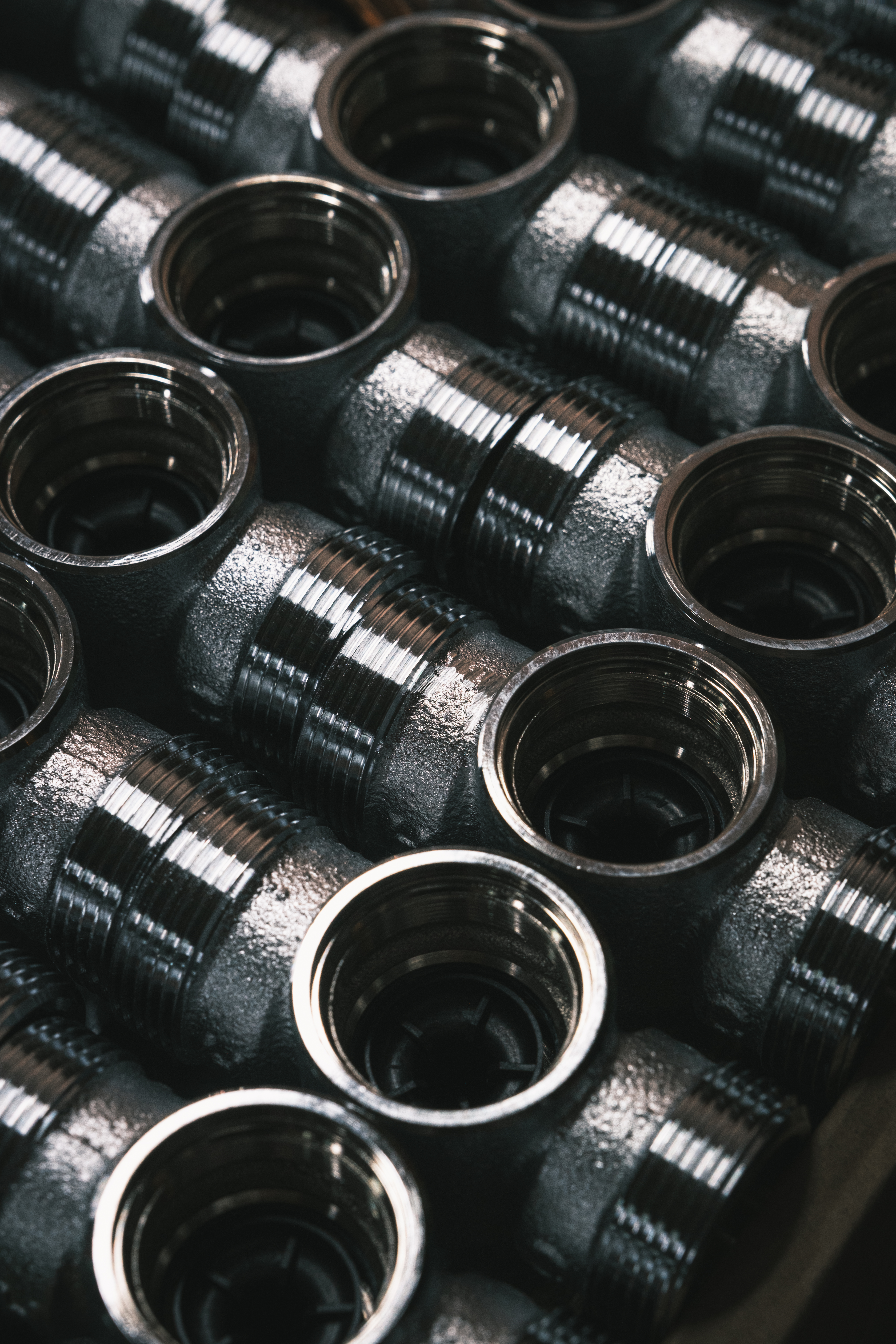

What Happens After Forming? (CNC Machining)
Regardless of how the valve body is formed, all three materials require CNC machining to achieve the precision needed for sealing and assembly. The raw casting or forging is a "blank" — close to final shape, but not yet functional.
Key Machining Operations
- Bore machining: The internal flow path is bored to the precise diameter needed for full port or reduced port flow.
- Seat pockets: The seat recesses where the PTFE or RPTFE seats will be installed are milled to tight tolerances. Seat pocket geometry directly affects sealing performance.
- Stem hole: The stem bore is drilled and reamed to ensure concentricity with the ball.
- End connections: Threaded ends (NPT or BSP), socket-weld ends, or flanged faces are machined to the applicable standard (ASME B1.20.1 for NPT, ASME B16.5 for flanges).
- Ball machining: The ball itself is turned, ground, and polished on dedicated CNC equipment to achieve the required sphericity and surface finish for leak-tight sealing.
How Are Ball Valves Assembled and Tested?
Assembly
Assembly involves inserting the seats (PTFE, RPTFE, or PEEK), placing the ball between the seats inside the body, inserting the stem through the stem bore, and securing the assembly with the end cap or body bolts (depending on 2-piece or 3-piece design). O-rings and stem packing are installed to complete the pressure boundary.
Pressure Testing
Every ball valve undergoes pressure testing before shipment. Standard test protocols include:
- Hydrostatic shell test: The valve body is pressurized with water to a pressure above the rated working pressure (typically 1.5x) to verify body integrity — no leakage or deformation permitted.
- Seat leakage test: With the valve in the closed position, pressure is applied to one side and the opposite side is checked for leakage. Soft-seated valves are expected to achieve bubble-tight (zero visible leakage) per API 598.
- Pneumatic test (optional): Some specifications require an air or nitrogen test to detect seat leakage that might not be visible with hydrostatic testing.
