Ball Valve vs Butterfly Valve: Wrong Choice Costs You Thousands in Downtime

Q: At what pipe size should I switch from ball valve to butterfly valve?

Above DN200 (8 inches), butterfly valves become the standard choice. At this size, a butterfly valve weighs roughly 1/3 to 1/5 of a comparable ball valve, costs 30-50% less, and requires significantly less installation space. Below DN100 (4 inches), ball valves dominate due to superior sealing and compact body design.

Q: Are butterfly valves suitable for data center liquid cooling?

For CDU main headers above 6 inches, butterfly valves are a viable option due to lower weight and cost. However, for rack-level isolation (typically 3/4 inch to 2 inches), ball valves are the standard choice — they provide faster shutoff, tighter sealing, and fit the compact piping layout between server racks.

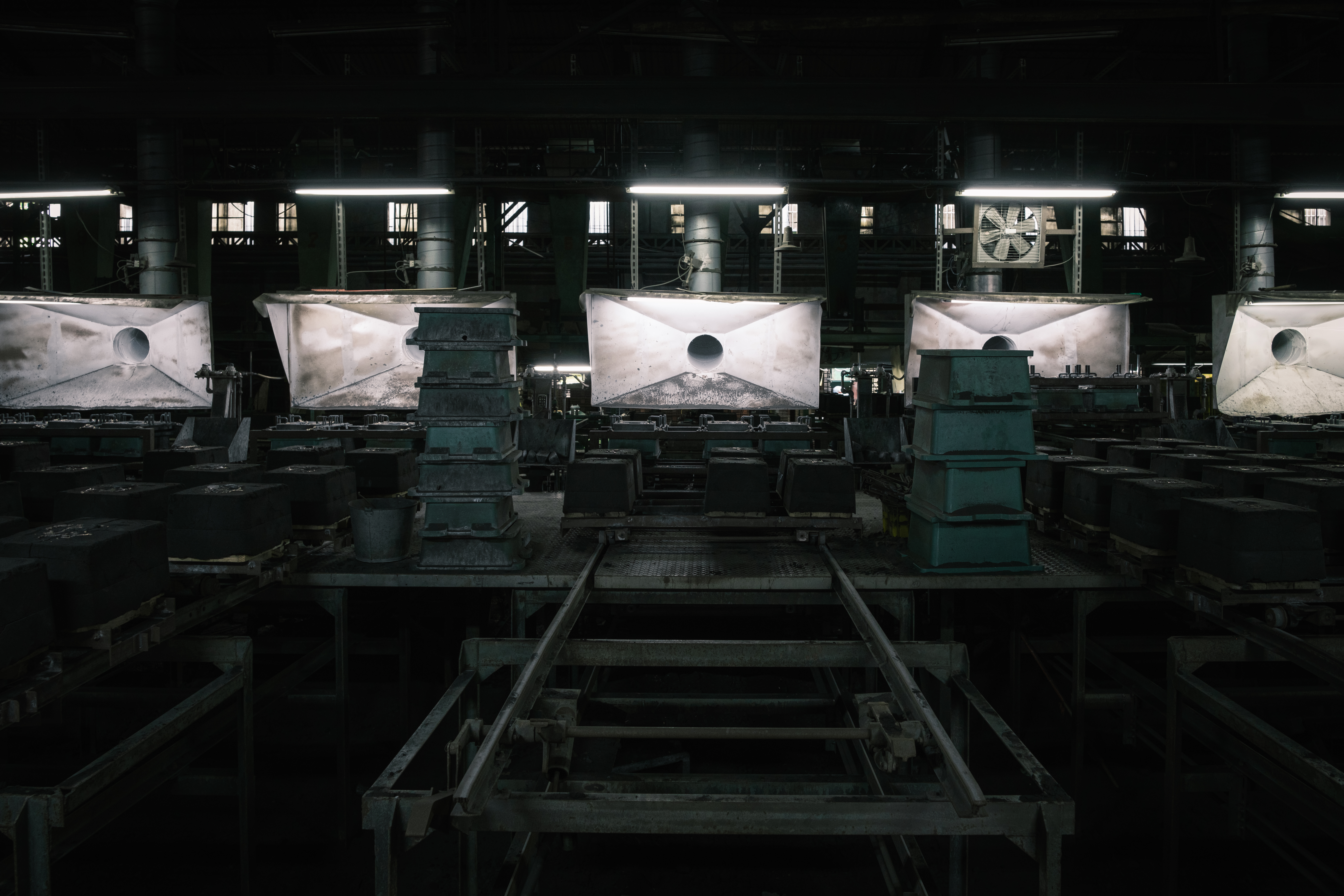

LINS Valve factory casting line for stainless steel ball valve and butterfly valve manufacturing

Quick Summary

Ball valves and butterfly valves are both quarter-turn valves, but they solve different problems. Ball valves use a hollow sphere for bubble-tight shutoff and full-bore flow — ideal for pipes under 6" where zero leakage matters. Butterfly valves use a rotating disc for flow throttling and large-diameter applications — at DN200 (8") and above, they cost 30-50% less and weigh 1/3 to 1/5 of a comparable ball valve. The wrong choice leads to premature seat wear, oversized actuators, or unnecessary cost. This guide provides the engineering data to match each valve to the right application.

How Does Each Valve Work?

A ball valve rotates a hollow sphere 90° to open or close. When open, the bore aligns with the pipe — creating an unobstructed flow path identical to a straight pipe section. When closed, the solid face of the ball presses against PTFE or RPTFE seats, achieving ANSI Class VI (bubble-tight) shutoff with zero measurable leakage.

A butterfly valve rotates a disc 90° on a shaft running through the center of the pipe. When open, the disc turns parallel to flow — but the disc and shaft remain in the flow path, creating some restriction. When closed, the disc edge seals against a resilient (rubber) or metal seat in the valve body.

Both are quarter-turn valves, meaning they go from fully open to fully closed in a 90° rotation. This makes both compatible with pneumatic and electric actuators. The fundamental difference is what sits inside the pipe when the valve is open: nothing (ball valve) vs. a disc (butterfly valve).

What Are the Key Performance Differences?

Specification	Ball Valve	Butterfly Valve
Flow mechanism	Hollow rotating sphere	Rotating disc on shaft
Operation	Quarter-turn (90°)	Quarter-turn (90°)
Flow obstruction when open	None (full port)	Disc + shaft in flow path
Cv (2" / DN50)	~180 (full port)	~60-80 (concentric)*
Cv (6" / DN150)	~1,400	~900-1,100
Cv (12" / DN300)	~5,000	~4,200-4,800
Shutoff class (soft seat)	ANSI Class VI (zero leakage)	ANSI Class VI (rubber seat)
Shutoff class (metal seat)	Class IV-V	Class IV
Throttling capability	Not recommended	Excellent (30-70% open)
Pressure rating	Up to Class 600 (1,480 PSI)	Typically Class 150-300 (up to 740 PSI)
Temperature range	-40°F to 450°F (PTFE seat)	-30°F to 250°F (EPDM seat)
Practical size range	1/4" to 12"	2" to 72"
Weight (8" Class 150)	~180 lbs	~45 lbs
Face-to-face length (8")	~18 inches	~2 inches (wafer, per API 609)
Relative cost (8")	$$$	$
Cycle life	50,000-100,000+ cycles	100,000+ cycles
Key standards	API 608, ISO 17292, ASME B16.34	API 609, MSS SP-67, AWWA C504

*Butterfly valve Cv varies by design: concentric (lowest), double-offset, triple-offset (highest). Values shown are for standard concentric type.

When Should You Choose Each Valve?

Ball valve wins: zero leakage, pipe under 4", high pressure (> Class 300), abrasive/particulate media, fire-safe service (API 607), or frequent on/off cycling.

Butterfly valve wins: pipe above 8", flow throttling, tight installations (wafer body ~2" face-to-face per API 609), HVAC/water service, or budget-sensitive large-diameter projects (30-50% cheaper above 6").

What About the 4" to 8" Crossover Zone?

Between DN100 (4") and DN200 (8"), both valve types are technically viable. The decision depends on your specific application requirements:

If Your Priority Is...	Choose	Why
Zero leakage	Ball valve	Consistent Class VI across all sizes
Flow throttling	Butterfly valve	Stable modulation, linear flow curve
Lowest weight	Butterfly valve	60-80% lighter at 6"
High pressure (> Class 300)	Ball valve	Available up to Class 600
Lowest cost	Butterfly valve	30-40% cheaper at 6"
Chemical compatibility	Ball valve (SS316)	PTFE seat + SS316 body resists chlorides
Automation speed	Tie	Both use quarter-turn actuators
In-line maintenance	Ball valve (3PC)	3-piece design allows seat swap without pipe removal

Which Valve for Which Application?

Application	Recommended	Why
Data center CDU (rack-level)	Ball valve (SS316, 3PC)	Compact, zero-leakage, glycol-compatible
Data center chiller plant	Butterfly valve	Large headers, flow balancing, lower cost
HVAC chilled water (< 4")	Ball valve	Cost-competitive, better sealing at small sizes
HVAC chilled water (> 6")	Butterfly valve	Throttling capability, weight savings
Chemical processing isolation	Ball valve (SS316)	Corrosion resistance, Class VI shutoff
Water treatment (large mains)	Butterfly valve	AWWA C504 rated, cost-effective for large diameters
Oil & gas wellhead	Ball valve	High pressure, fire-safe (API 607)
Fire protection	Butterfly valve (UL/FM listed)	Code-compliant, lightweight, fast installation
Steam service	Ball valve (metal seat)	Higher temperature range
Pharmaceutical / food grade	Ball valve (sanitary)	CIP-compatible, cavity-free design available

Cost Note: At 2" the cost is comparable. At 6", butterfly valves cost ~65% less. At 12", ~75% less. But factor in actuator, mounting kit, and installation labor — not just the valve body. Butterfly valve installation labor is 50-70% less due to lighter weight and wafer-style mounting.

Decision Framework: 5 Questions to Choose the Right Valve

Use these five questions to select the right valve for your application:

1. What is the pipe size?
Under 4" → Ball valve. Over 8" → Butterfly valve. Between 4-8" → Continue to question 2.

2. Do you need flow throttling?
Yes → Butterfly valve. Ball valves are on/off only — partial opening accelerates seat erosion.

3. Is zero leakage critical?
Yes → Ball valve. While rubber-seated butterfly valves can achieve Class VI, ball valves maintain this rating more consistently over their lifecycle.

4. What is the system pressure?
Above Class 300 (740 PSI) → Ball valve. Standard butterfly valves cap at Class 150-300.

5. Is weight or space a constraint?
Yes → Butterfly valve. Wafer butterfly valves weigh 60-80% less and require 70% less pipe space than ball valves.

If you answered "no" to questions 2-5, either valve works — choose based on lifecycle cost and maintenance preference.

Frequently Asked Questions

Which valve is better for throttling — ball valve or butterfly valve?

Butterfly valves are better for throttling. Their disc design allows stable flow modulation between 30-70% open. Ball valves are on/off devices — partially open positions cause seat erosion and turbulent flow. If your system requires flow regulation, choose a butterfly valve or add a separate control valve downstream of a ball valve.

At what pipe size should I switch from ball valve to butterfly valve?

Above DN200 (8"), butterfly valves become the standard choice. At this size, a butterfly valve weighs roughly 1/3 to 1/5 of a comparable ball valve, costs 30-50% less, and requires significantly less installation space. Below DN100 (4"), ball valves dominate due to superior sealing and compact body design.

Can butterfly valves achieve zero leakage like ball valves?

Standard rubber-seated butterfly valves achieve ANSI Class VI (bubble-tight) shutoff, matching ball valves. However, metal-seated butterfly valves (used in high-temperature service) typically only reach Class IV. Ball valves consistently deliver Class VI across most seat materials, making them more reliable for zero-leakage applications.

Are butterfly valves suitable for data center liquid cooling?

For CDU main headers above 6", butterfly valves are a viable option due to lower weight and cost. However, for rack-level isolation (typically 3/4" to 2"), ball valves are the standard choice — they provide faster shutoff, tighter sealing, and fit the compact piping layout between server racks.

Need help selecting the right valve type for your application? Contact the LINS Valve engineering team — we manufacture SS316 ball valves from 1/4" to 4" with NPT, BSP, and flanged connections, and can recommend the optimal valve type for your piping specification.
